Use Case
You would like to add text visibly over some portion of a IIIF image resource without making a derivative of the original image and retaining its deep zoom possibilities.
Implementation Notes
This recipe aims to show the simplest form of a combination that is more likely to be used in combination with other IIIF recipes. For example, it forms a part of the Multimedia Canvas recipe.
Though the implementation is not complex, the implications get well into the nuances of IIIF. Making a textual annotation visible is the consequence of using a motivation
value of painting
on an Annotation in combination with placing that Annotation as an item inside an Annotation Page instead of as part of an annotations
section. Making these two changes tells a client to display the text directly instead of separating it as an annotation to be handled in the client’s manner of showing those. The Presentation API 3.0 states clearly that
- Annotations in an
annotations
section are not permitted to have themotivation
valuepainting
(Annotations) - Conversely, Annotations referenced in
items
must have themotivation
valuepainting
. (Canvas) - Finally, content to be rendered must be in an Annotation with the
motivation
valuepainting
. (Motivation values and Canvas)
Styling text or using HTML in text painted onto a Canvas is possible, but the options are limited. In addition, styling added to a manifest may be unreliable across viewers. For one example, since IIIF Canvas dimensions are unit-less, using pixels for text size is valid but may not be interpreted identically by different viewers. For a more detailed look at styles in Web Annotations, see the W3C Web Annotation Data Model’s Styles section.
The presentation of resources is upwards in a z-index from the first “painting” Annotation encountered to all subsequent “painting” Annotations. Therefore, for the textual annotation to be visible, it must come later in the manifest order of Annotations than the image resource it marks.
Restrictions
Markup in the textual annotation is limited for security reasons. Clents are expected to allow only a
, b
, br
, i
, img
, p
, small
, span
, sub
, and sup
tags, and may remove any or all of those. For more details of permitted and prohibited markup, see the HTML Markup in Property Values section of the IIIF Presentation specification.
Example

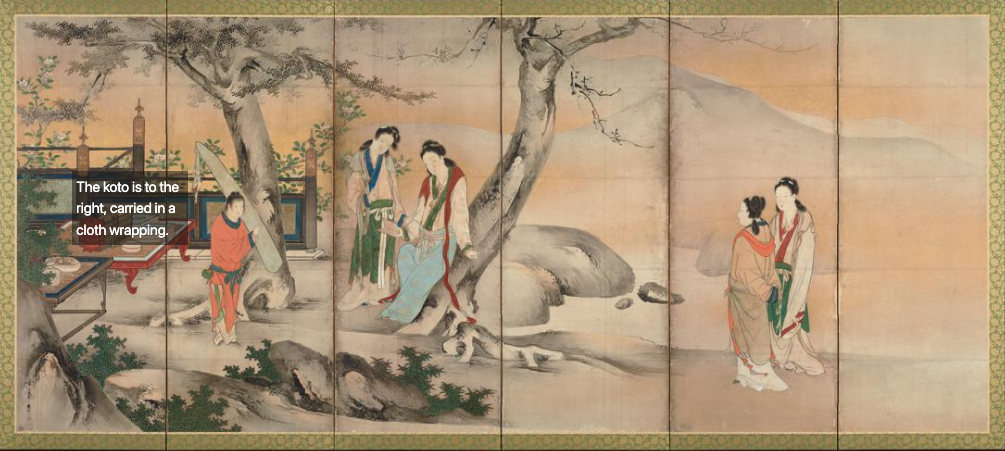

In this example, we have a base image showing people in the countryside, one of whom is carrying a wrapped koto. Hypothesizing for our use case that the wrapped koto is less identifiable to people unfamiliar with the scene, there is a textual annotation adjacent to it that indicates it. A viewer might render it as shown in this image:
Related Recipes
- HTML in Annotations for further discussion on markup in an Annotation
- Multiple Choice of Images in a Single View (Canvas) contains additional text about z-index ordering
